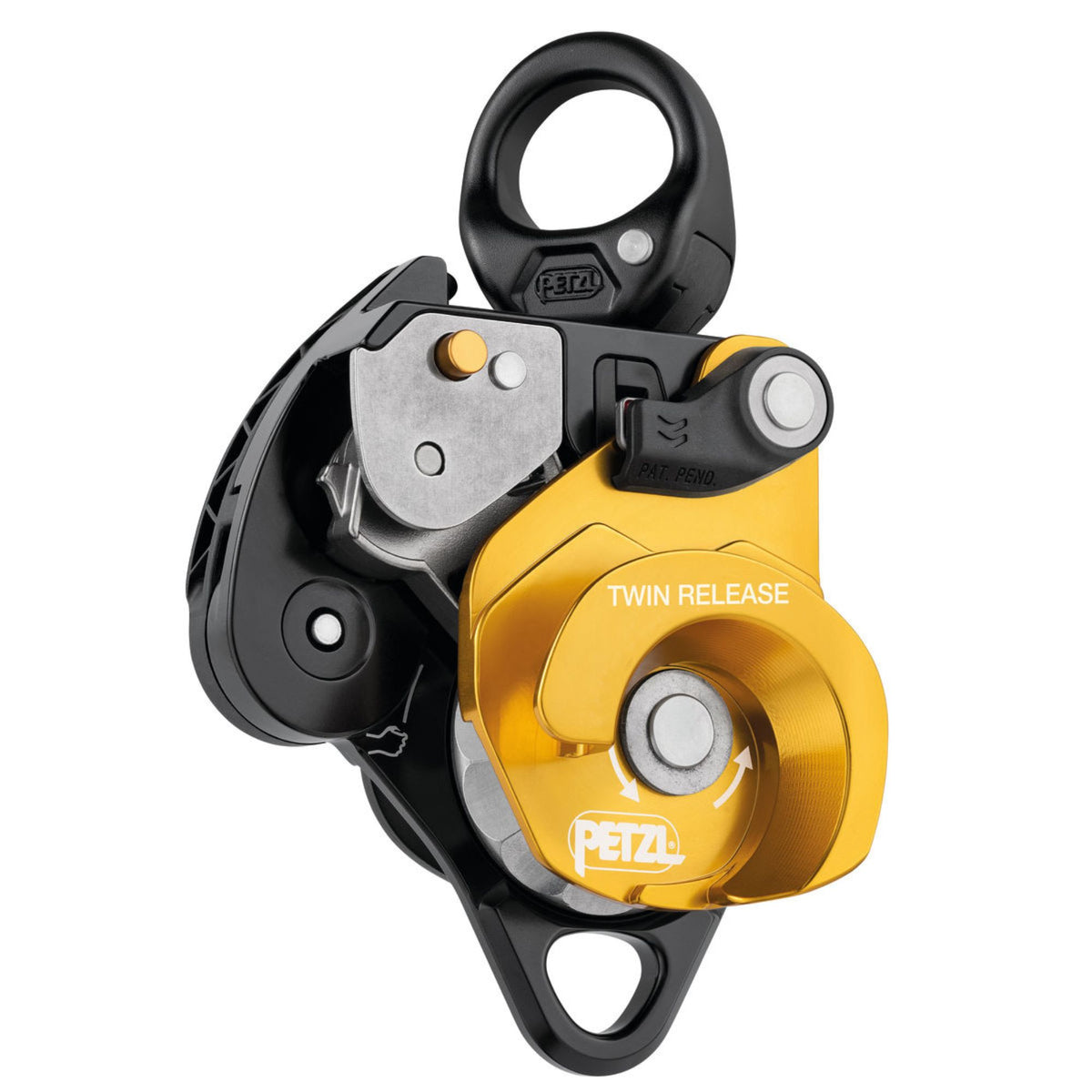

Petzl TWIN RELEASE Releasable double progress capture pulley for haul systems

Petzl Twin Release Double Pulley

SKU P001DA00
Sold out
$324.00 - $324.00
$324.00
$324.00 - $324.00
$324.00
Availability:
Out of stock
by Petzl

The Petzl Twin Release double progress-capture pulley is engineered for setting up 4:1 haul systems, making it ideal for confined space operations and technical rescues. Featuring a releasable cam with an ergonomic handle, it allows precise tension release and load control. The integrated brake within the moving side plate, coupled with the main faceted sheave's single-direction rotation, provides enhanced braking and improved control for lowering heavy loads. The dual sheaves ensure outstanding hauling efficiency, while the integrated swivel facilitates smooth operation by allowing pulley orientation under load and direct attachment of carabiners, ropes, or slings.

Technical PDFs

Declaration of Conformity PDFs

PPE Protection PDFs

Features

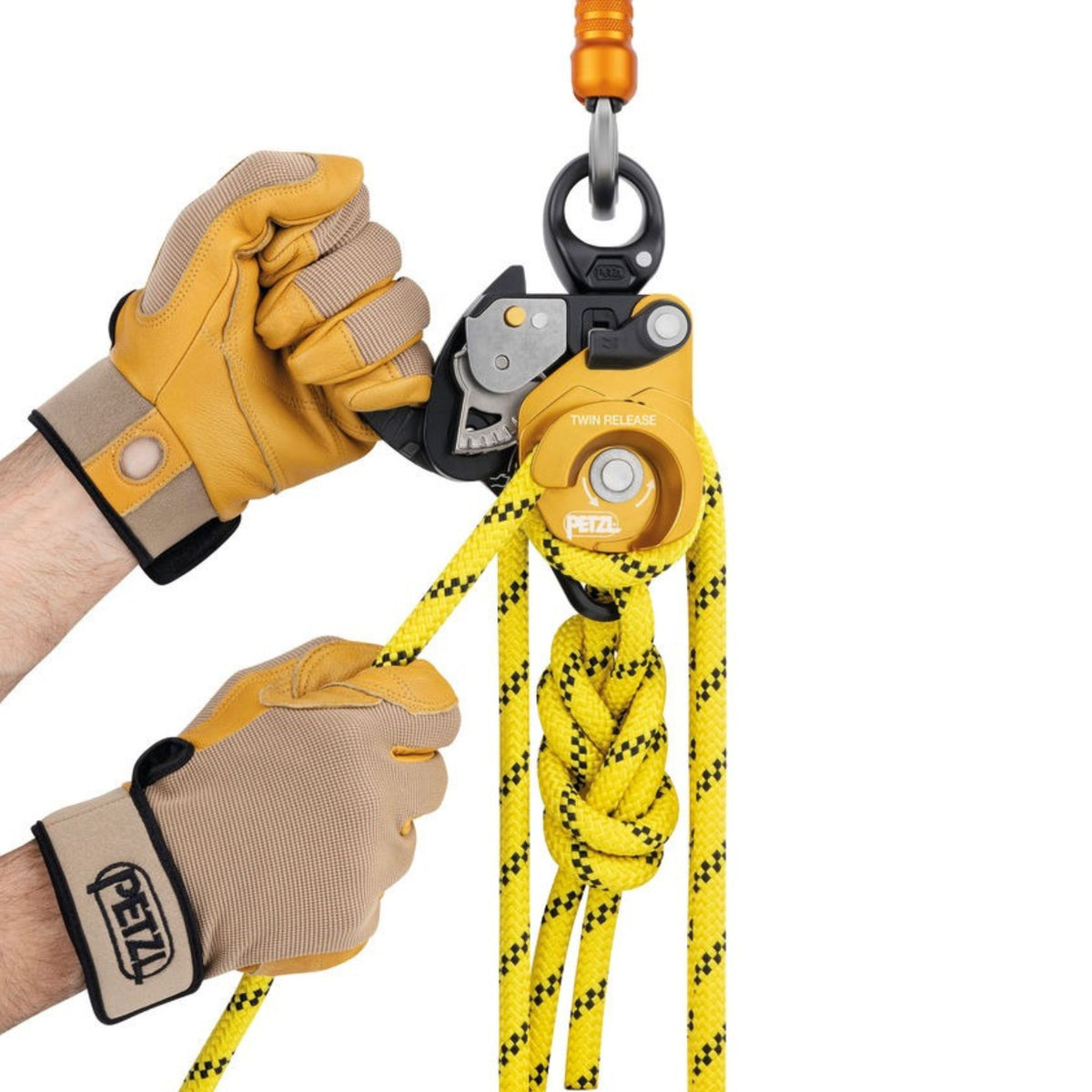

• Double progress capture pulley with handle to release cam:
- Ergonomic handle for easy release of the cam.
- Brake integrated into main moving side plate allowing comfortable and precise control when lowering heavy loads.

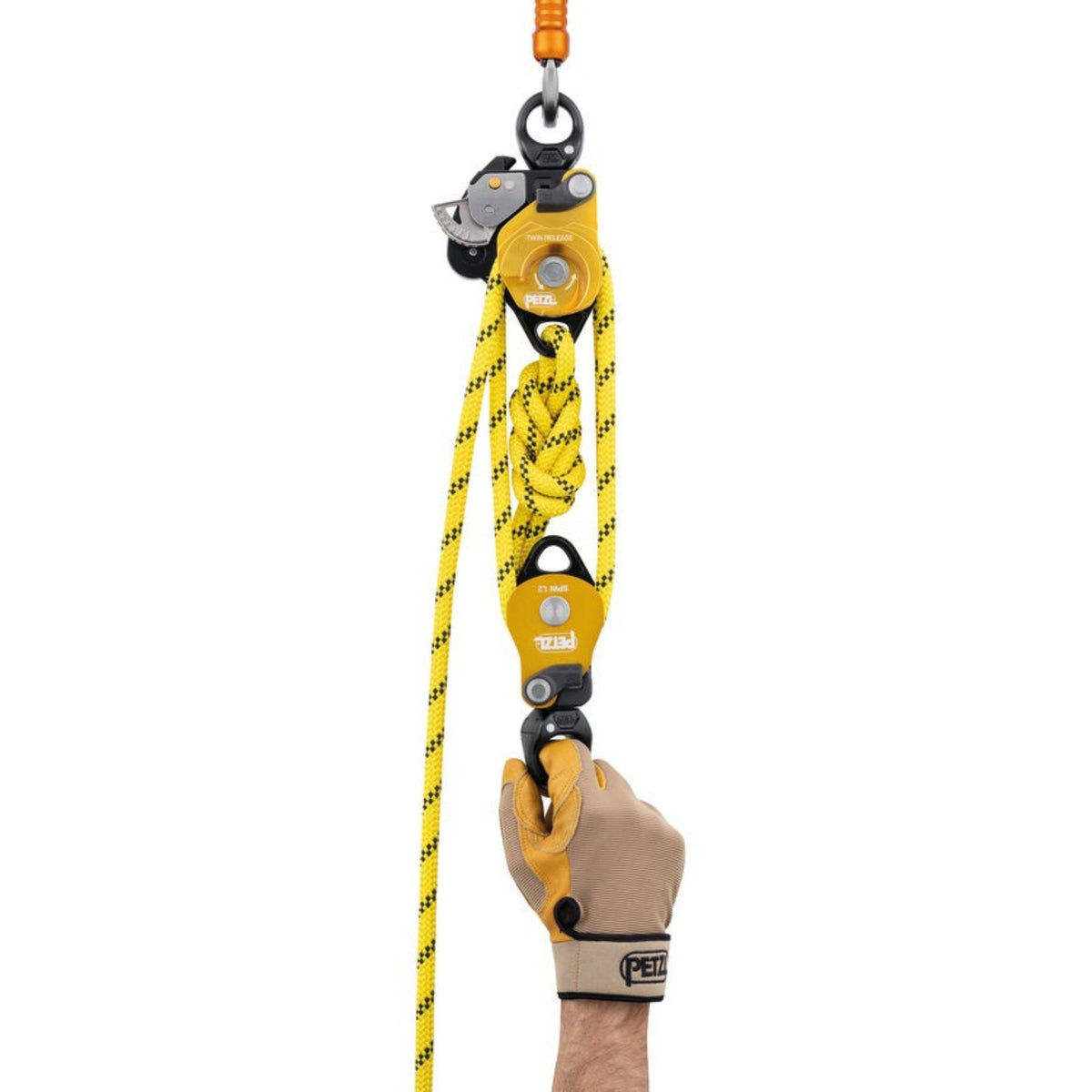

- Cam can be locked in the open position to easily feed slack.
- Toothless cam helps preserve the rope and allows for easy transition from lowering to hauling and vice-versa.
• Efficiency is optimised for 4:1 haul systems:
- Large-diameter sheave mounted on sealed ball bearings for excellent hauling efficiency.

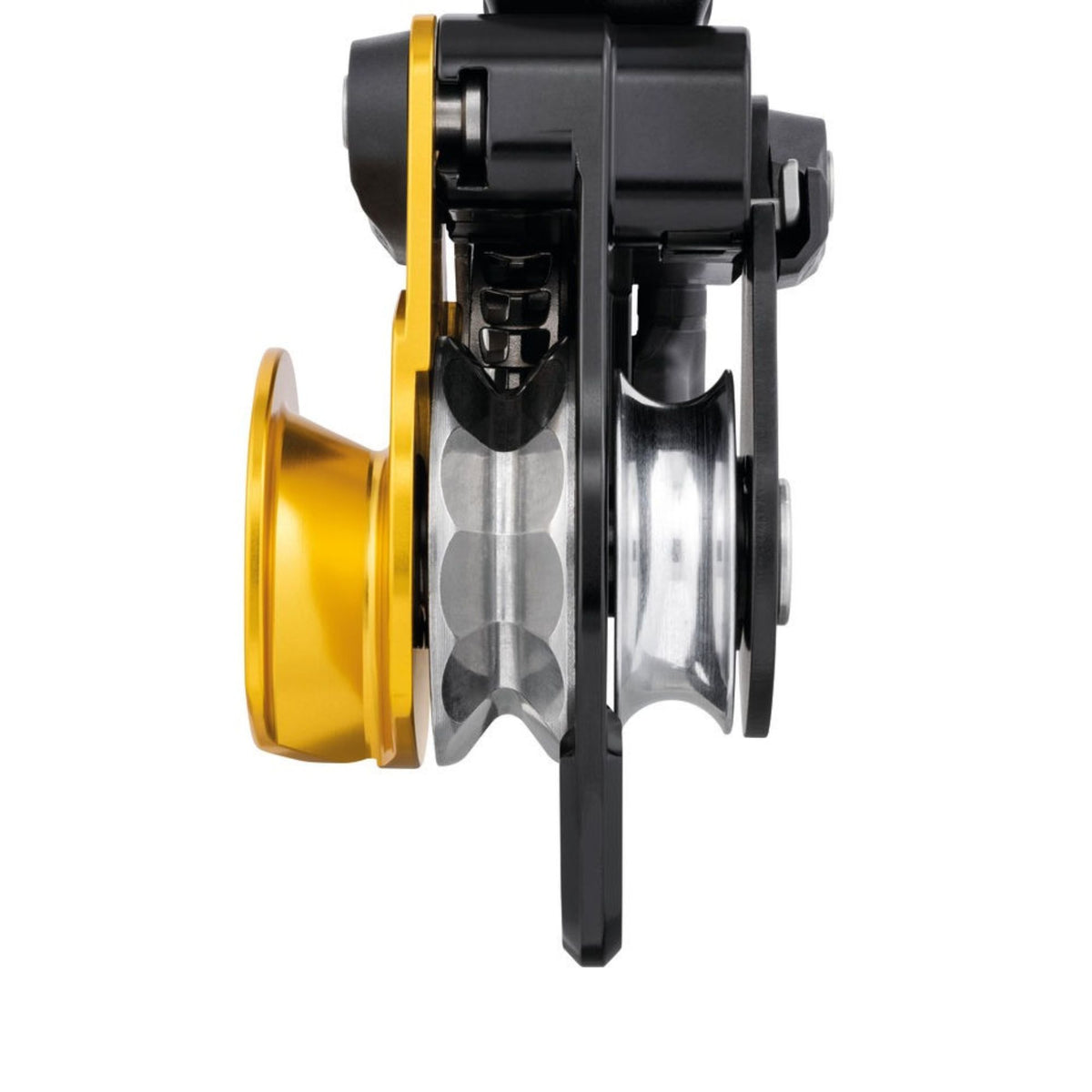

- Main faceted sheave with single-direction rotation provides excellent efficiency when hauling and adds friction zones with the rope for additional braking when lowering heavy loads (more information in the Instructions for Use and in the technical tips at www.petzl.com).
- Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems.
• Easy to use:

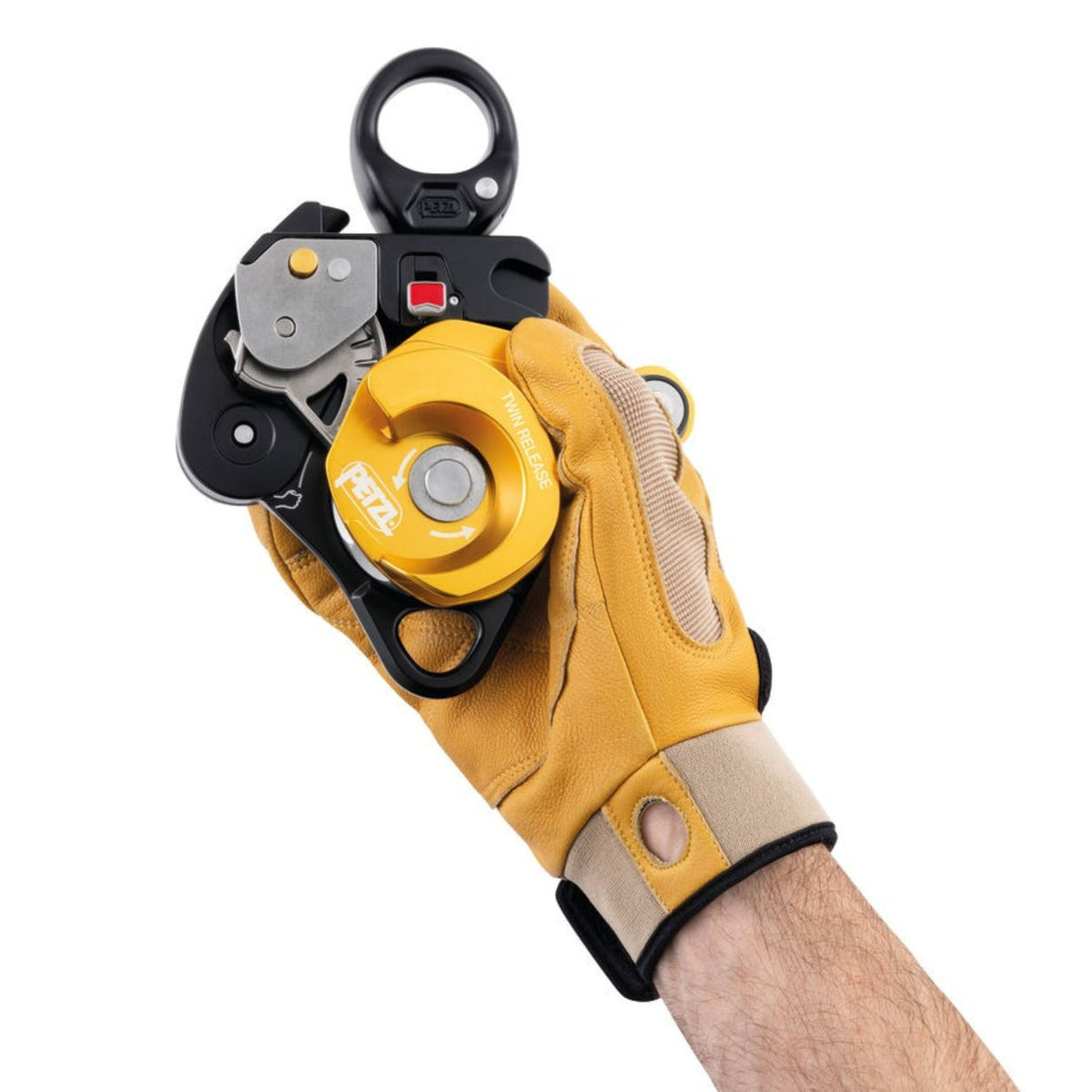

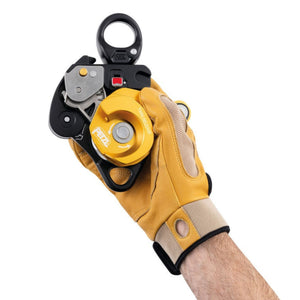

- Triple-action opening of the moving side plates is quick and easy, even with gloves.
- Red indicators provide a visual warning when the side plates are unlocked.
- The rope can be installed with the device connected to the anchor.
- Hole in the handle for installation of a remote control cord.
• Facilitates operations, thanks to the swivel:
- Allows pulley to be oriented under load.
- Accommodates up to three carabiners
- Swivel and auxiliary attachment point allows the use of ropes and slings for easier rigging.

Tech Specs

• Weight: 800g
• Material(s): Aluminium, stainless steel, nylon
• Certification(s): CE EN 567, CE EN 12278 partial*, NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical
Use, UKCA, XF 494: FZL-H-T 9.5/13, XF 494: FZL-Z-Q 9.5/13
* Meets performance requirements of the EN 12278 standard
• System Certification(s): ANSI Z359.4 Synthetic Rope Tackle Block (more information in the Instructions for Use)
• Min. rope diameter: 8mm
• Max. rope diameter: 13mm
• Sheave type: Sealed ball bearings
• Faceted Sheave Diameter: 40mm
• Sheave diameter: 38mm
• Efficiency: 95%
• Maximum Working Load: 280 kg (more information in the Instructions for Use and in the technical tips at www.petzl.com)
• Breaking strength of the auxiliary attachment point: 22 kN
• Breaking strength: 36kN
